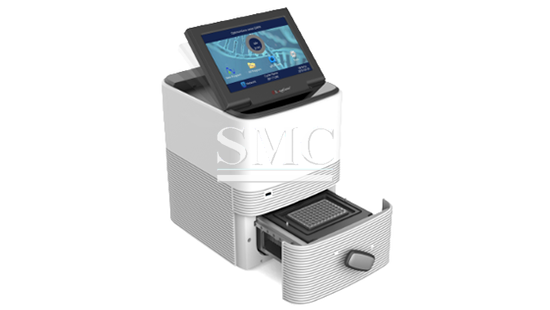

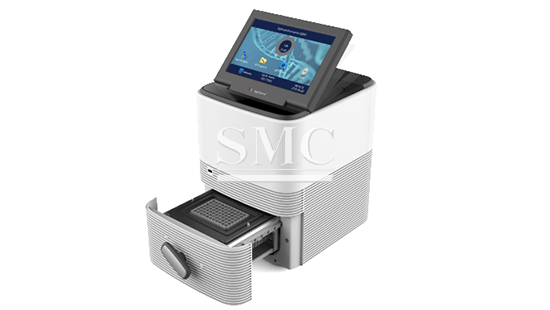

Technical Information of Real-Time PCR System:

Model	Q 2000C
	Instrument Performance
Sample Block Capacity	96wells*0.1ml
Reaction Volume	10-50ul
Tubes Option	White or clear PCR tubes or strips or 96well PCR piate,with optical flat cap
Heating&Cooling Technology	Peltier technonlong allow1,000,000 thermal cycles
Control Methods	Operated via PC or self-contaiend touch screen on instrument
Language	Englisn
Communications	USB2.0or LAN
Display	10"Colcr TFT LCD and Touch Screen,view angle adjustable
Max.Number of programs	Max.15,000 programs onboard,unlimited storage of pretocols with USB flash drive
	Temperature
Block Temp.Range	0~105℃
Max.Heating Rate	6℃/sec
Max.Cooling Rate	5℃/sec
Temp.Uniformity	≤±0.2℃ （at 90℃）
Temp.Accuracy	≤±0.2℃ (at 90℃)
Display Resolution	0.1℃
Heat Lid Temp.Rage	30℃~112℃
Temp.Control Mode	Block & Calculated sample
Gradient Range	30℃-100℃
Temp.differential Range	1℃-30℃
	Fluorescence Detection
Excitation	Long life LED lanps
Detection	CCDs
Dynamic Range	1-10¹⁰
Sensitivity	≥1 copy
Calibrated Dyes at installation	F1：FAM、SYBRGreen F2：VIC、HEX、JOE、CY3、NED F3：ROX、TEXAS-RED F4 ：CY5 F5：CY5.5 F6：Reserved
Fluorescence Excitation Range	300-800nm
Fluorescence Detection Range	500-800nm
Date Export Formats	Excel、TXT
	Other Features
AC Power Supply	100-240V,50-60Hz
Consupmtion	600W
Net Weight	13kg
Dimension(LWH)	334280365mm
Computer Operating Systems	Windows10、Windows7、WindowsXP
